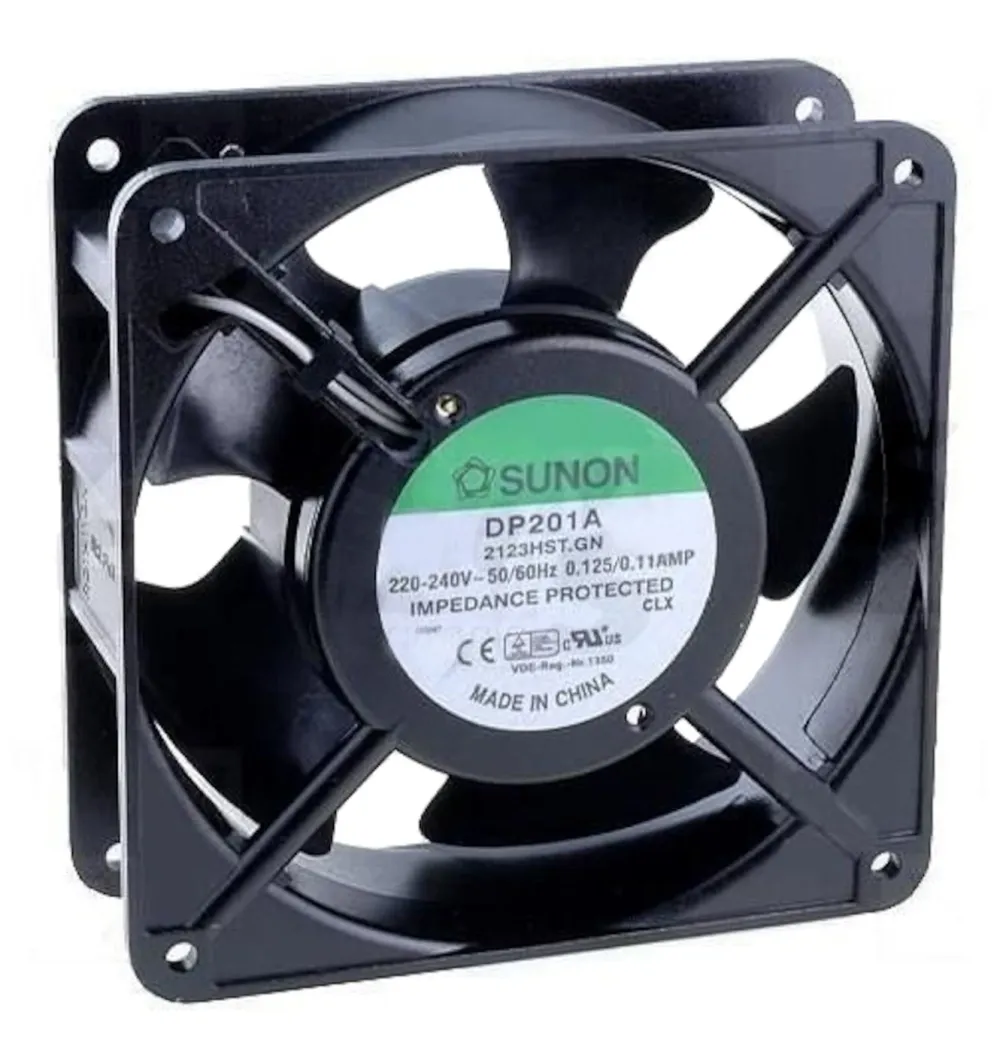

Kjell Elektronikk|Aksialvifte 230 V 120 mm

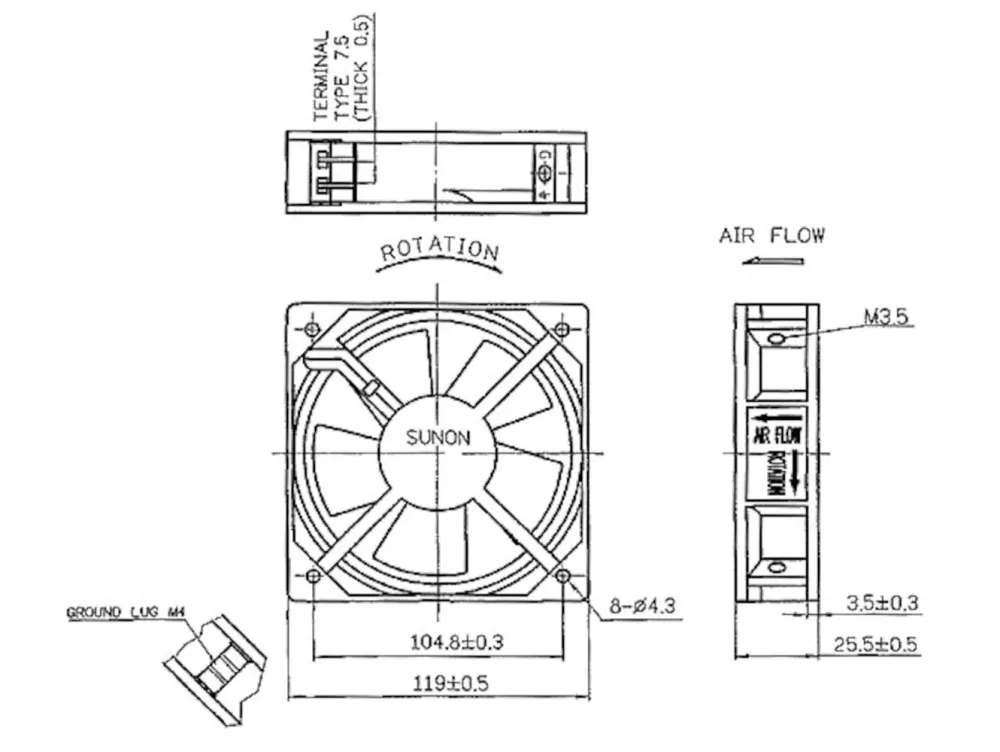

Size (A x A x B): 120 x 120 x 25 mm

Bearing: sleeve

Voltage: 220-240 Vac (50-60Hz)

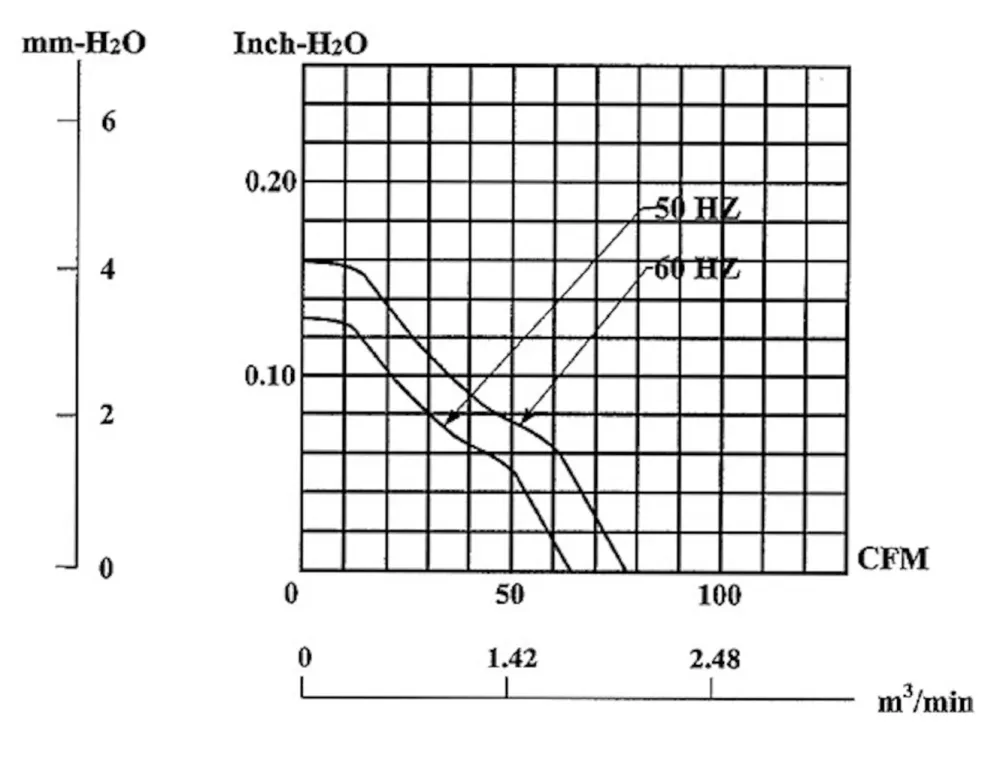

Airflow: 109 ~ 133 m³/hr

Current: 0.1-0.09 A

Speed: 2000-2300 rpm

Noise (at 1m): 43-46 dBA

Connection: terminal

Materials:

Blade: thermoplastic PBT (UL94-VO)

Frame: die-cast ALU

Dielectric strength: 1500 Vac for 2 seconds

Insulation resistance: 500 Vdc, 100 Mohm

Tolerance:

Speed: ± 5%

Airflow: ± 10%

Airflow: UL-recognised E77551, CSA-certified LR53000, VDE-approval 1350

Operating temperature:

Sleeve bearing: -10°C to +70°C

Ball bearing: -20°C to +80°C
